SPECIFICATIONS
| Overview | |
|---|---|
| Height of Cabinet | 3.38" (9 cm) |
| Width | 20.63" (52 cm) |
| Depth | 19.13" (49 cm) |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Voltage/Frequency | 230 V AC/60 Hz |
| Weight | 15.0 lbs. (7 kg) |
| Shipping Weight | 17.0 lbs. (8 kg) |
| Parts & Labor Warranty | 1 Year |
| Electric Cooktop | |
| Heating Type | Radiant |
| Surface | Glass |
| Element Type | Glasstop |
| Number of Elements | 3 |
| controls | Dial |
| Countertop Cutout Height | 3.38" (9 cm) |
| Countertop Cutout Width | 19.88" (50 cm) |
| Countertop Cutout Depth | 18.38" (47 cm) |
| Power Source | 230V |
| Element #1 Size | 6.0" (15 cm) |
| Element #1 Wattage | 1200.0 |
| Element #2 Size | 6.0" (15 cm) |
| Element #2 Wattage | 1200.0 |
| Element #3 Size | 6.0" (15 cm) |
| Element #3 Wattage | 1200.0 |
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to .Note: Nickel is a component of stainless steel.
FEATURES
Smooth black surface made from Eurokera glass
Easy cleanup and elegant style on a smooth ceramic glass surface
Easy cleanup and elegant style on a smooth ceramic glass surface
Three heating elements
3 1200W burners, each with 6" diameter, manufactured for SUMMIT by E.G.O. of Germany, considered by many to be the finest in the world
3 1200W burners, each with 6" diameter, manufactured for SUMMIT by E.G.O. of Germany, considered by many to be the finest in the world
Push-to-turn controls
Prevents accidents by requiring a small amount of force to turn on cooktop heat
Prevents accidents by requiring a small amount of force to turn on cooktop heat
Residual heat indicator light
Indicates when surface is still hot to touch
Indicates when surface is still hot to touch
Designed for built-in installation
Fits counter cutout sizes that are 19 7/8" wide by 18 3/8" deep
Fits counter cutout sizes that are 19 7/8" wide by 18 3/8" deep
ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility
Upfront controls and easy-to-operate knobs offer easier accessibility
DESCRIPTION

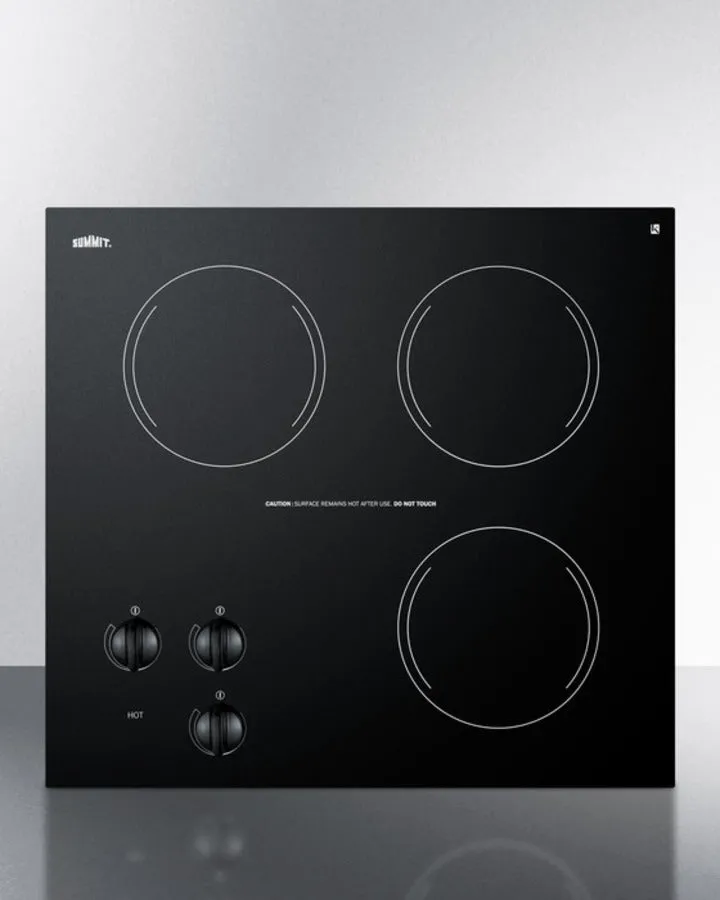

SUMMIT CR3240 is a three-burner 230V electric cooktop that brings outstanding value to kitchen counters.Made from Eurokera ceramic glass, the CR3240 offers modern style and convenience with an easy-to-clean jet black cooking surface. Three 1200W radiant elements feature a 6" diameter, manufactured by E.G.O. in Germany. Push-to-turn control knobs provide infinite heat control. A residual heat light indicates when the surface is still hot. This unit is made in Europea and designed to fit counter cutouts that are 19 7/8" wide by 18 3/8" long.Also available with one and two burners, SUMMIT CR electric cooktop series offers top performance in a quality design.
SPECIFICATIONS
| Overview | |
|---|---|
| Height of Cabinet | 3.38" (9 cm) |
| Width | 20.63" (52 cm) |
| Depth | 19.13" (49 cm) |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Voltage/Frequency | 230 V AC/60 Hz |
| Weight | 15.0 lbs. (7 kg) |
| Shipping Weight | 17.0 lbs. (8 kg) |
| Parts & Labor Warranty | 1 Year |
| Electric Cooktop | |
| Heating Type | Radiant |
| Surface | Glass |
| Element Type | Glasstop |
| Number of Elements | 3 |
| controls | Dial |
| Countertop Cutout Height | 3.38" (9 cm) |
| Countertop Cutout Width | 19.88" (50 cm) |
| Countertop Cutout Depth | 18.38" (47 cm) |
| Power Source | 230V |
| Element #1 Size | 6.0" (15 cm) |
| Element #1 Wattage | 1200.0 |
| Element #2 Size | 6.0" (15 cm) |
| Element #2 Wattage | 1200.0 |
| Element #3 Size | 6.0" (15 cm) |
| Element #3 Wattage | 1200.0 |
DOWNLOADS
BROCHURE w/ DRAWINGS
TECHNICAL DRAWING (.dwg)
OTHER
USE & CARE
